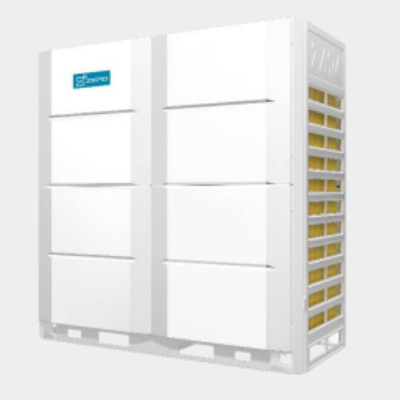

Cooling Only Outdoor Unit
A DC inverter air conditioning system designed for cooling only operation with enhanced vapor injection technology.
Power
8HP – 36HP
Power Output Tolerance
—
Maximum Efficiency
EER up to 4.69 W/W
Key Features
- Enhanced vapor injection DC inverter air conditioning system.
- Cooling operation with ambient temperature range from -15°C to 60°C.
- Scroll compressor with DC inverter technology.
- DC inverter fan motor with axial fan blade.
- Refrigerant cooling technology for PCB cooling at high ambient temperature.
- AI algorithms operation for temperature and system efficiency optimization.
- Generator mode with 40%–100% operation range.
- Wide voltage range 285V–458V.
Specifications
HP
32HP
Model: CTVT-CCT(***)DZT
900
Power Supply
380-415V, 50/60Hz, 3Ph
Cooling Capacity
90.0 KW
Cooling Input
27.50 KW
Cooling Current
43.86 A
Cooling EER
3.27 W/W
Max. Input Consumption
34.59 KW
Max. Current
61.29 A
Compressor Quantity
2
Compressor Type
Scroll compressor
Outdoor Fan Moto Type
DC INVERTER
Outdoor Fan Moto Quantity
2
Outdoor Fan Blade Quantity
Axial
Outdoor Fan Blade
2
Air volume
27000 m3/h
Sound Pressure Level
65 dB(A)
Dimension (WxDxH) Net
1760x845x1780 mm
Dimension (WxDxH) Racking
1835x925x1940
Weight Net
390 kg
Weight Gross
415 kg
Refrigerant type / Quantity Factory Charged Volume
15.5 kg
Refrigerant Piping Liquid Side
φ19.1 mm
Refrigerant Piping Gas Side
φ34.9
Ambient Temp (Cooling)
-15~60 °C
