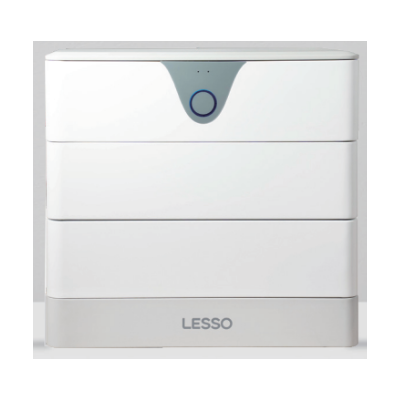

LESSO Residential Rack Energy Storage
A residential rack energy storage battery designed for home energy storage systems.
Manage Battery Energy
10.24kWh
Nominal Voltage
204.8v
Manage Battery Capacity
50Ah
Key Features
- Safer lithium iron phosphate, designed to comply with IEC, UL standards.
- The installation can be completed by simple stacking.
- 10.24 KWh ~ 20.48 KWh can be extended.
- Compatible with multiple brands of mainstream inverter use.
- 15 years life design. Long cycle life and superior performance.
- WIFI configuration is optional.
Specifications
Number of battery modules
2
Manage battery energy
10.24kWh
Nominal voltage
204.8V
Operation voltage range
185.6V~233.6V
Manage battery capacity
50Ah
Max. charge current
50A
Max. discharge current
50A
Communication to inverter
CAN / RS485
Wifi
Support
Display
SOC status indicator LED
IP rating
P55
Cycle life
6000 Cycles @25°C @70%EOL @0.2C charge & 0.5C discharge, 90% DOD
Battery module weight
=60kg
Module dimension (L*W*H)
630*440*590 mm
Cell type
LFP - Lithium iron phosphate
Design life
15 years (25°C/77°F)
Charge temp. range
0~50°C(32~122°F)
Discharge temp. range
-10~50°C(14~122°F)
Operating temperature
Charge:0~50°C(32~122°F) Discharge: -10~55°C (14~131°F)
Relative humidity
5%~95%
Install altitude
<4000m
Certification
CE /IEC62619 / UL1973 / UL9540A/UN38.3
