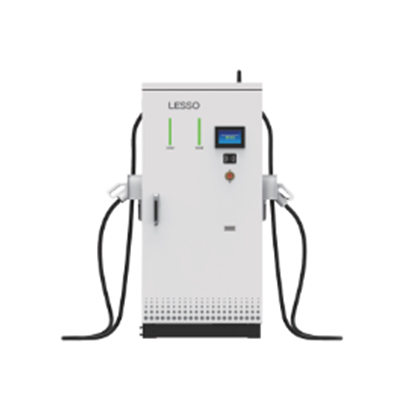

LSADC-M-180/1000-D
An AC&DC integrated charger designed for high-power public and commercial charging applications.
Power
180KW
Power Output
200-1000V (DC), 200A
Maximum Efficiency
≥95%
Key Features
- Two CCS2 DC outputs rated at 200A each.
- Total maximum output power up to 180kW.
- IP54 high ingress protection level.
- Voltage range from 200V to 1000VDC.
- 7-inch color LCD with RFID support (ISO/IEC14443 A).
- Start via QR code, card, BLE5.0, or PhC.
- OCPP 1.6J / 2.0J optional support.
- Ethernet, 4G, and WiFi communication options.
- Forced air cooling with emergency stop function.
Specifications
Design
Dimensions
850 × 850 × 1800 mm
Materials
Galvanized Steel
Features
Wattage
180kW
Operating Temperature
25C~55C
Power Output Tolerance
200-1000V (DC), 200A
