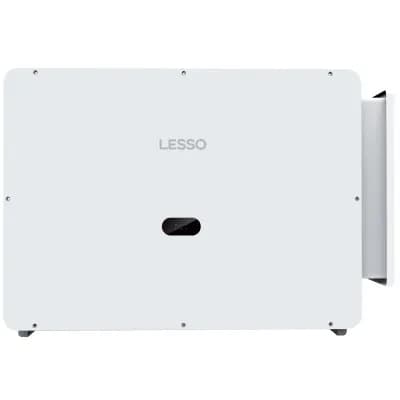

LSBH 225 KTL3HV-OC1
An on-grid PV inverter designed for high-power photovoltaic systems.
Power
225KW
Power Output Tolerance
247.5kW
Maximum Efficiency
99.02 %
Key Features
- Maximum DC input voltage up to 1500VDC.
- MPPT voltage range from 500V to 1500VDC.
- Up to 12 MPPTs with 2 input strings per MPPT.
- Intelligent speed-controlled air cooling.
- Maximum efficiency up to 99.02%.
- THD <2% at rated power.
- Protection class IP66.
- RS485 / WIFI / GPRS communication interface (optional)
Specifications
Design
Dimensions
1008mm × 700mm × 351mm
Materials
—
Features
Wattage
225KW
Operating Temperature
-25 ~ +60℃
Power Output Tolerance
—
Warranty
Warranty - 5 years
